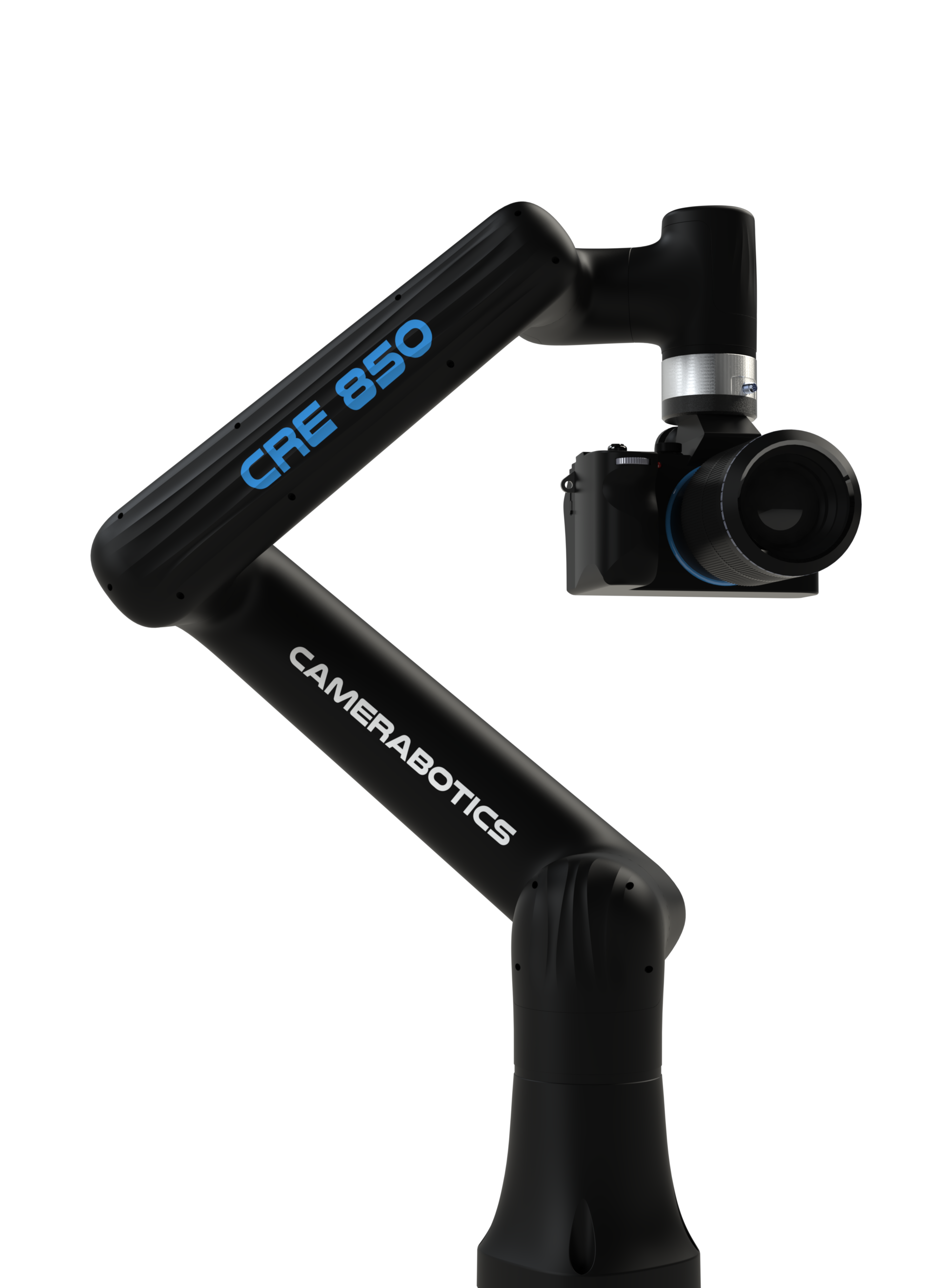

The CRE 850
Cinema Robot.
Compact,
Ultra-Light, Backdrivable.
2.0
CAMERA SPEED
5
DYNAMIC PAYLOAD
850
ARM REACH
0.05
MOTION REPEATABILITY
YOUR FIRST STEP TO Cinema ROBOTICS.
The CRE 850 combines a lightweight, compact design with backdrivable capabilities, making it the perfect choice for easy, versatile robotics integration. Whether mounted on a tripod with a Mitchell mount or secured on a table using the included clamp, the CRE 850 delivers smooth, reliable performance in a variety of setups.
Ideal for those stepping into robotics, it offers flexibility, precision, and speed, all in a portable, easy-to-use package. Its compact size makes it perfect for tight spaces, while the simple mounting options allow you to adapt to any environment with minimal effort.
Explore the features and technical specifications below.
Real-Time Interface
Focus on design and creativity and let Lensmaster remove the guesswork from opperating your robot.
Timeline Editor
Design complex moves with few keyframes using Lensmaster’s advanced motion planner.
Joystick Jogging
Jog your robot in realtime using any joystick controller via Lensmaster.
Dynamic FIZ Control
Perfectly sync up your Focus, Iris, and Zoom to nail the perfect shot.
Target Tracking
Easily keep your subject centered in frame at all times regardless of how complex your move is.
Music Sync
Sync music playback with your robot motion and design animations that hit the beat!
Virtual Production Ready
Stream FreeD in realtime to Unreal Engine or Aximmetry.
Export FBX to Maya or Blender.
Pre-Visualization
Virtually visualize your shot whilst designing it before connecting to a robot.
TECH SPECS
Rig Reach
Forward Reach (From Center)
1.1m
3.6ft
Upper Reach (From Floor)
2.25m
7.38ft
Lower Reach (From Floor)
0.12m
0.4ft
Rig Kinematics
Range of Motion
Speed
Rotate
±170°
220°/s
Lift
-190° / +45°
210°/s
Arm
-120° / 156°
270°/s
Roll
±185°
380°/s
Tilt
±120°
340°/s
Pan
±350°
630°/s
Rig Weight
Max Paylaod
11.1kg
24.5lbs
Robot
55kg
121lbs
Base (No Weights)
92kg
203lbs
Removable Weights (16pcs)
128kg
282lbs
Robot Controller
33kg
72.7lbs
Footprint
Base Height
0.7m
2.3ft
Base Footprint
0.73m x 0.73m
2.4ft x 2.4ft
Power Requirements
Operating Voltage
AC 1x 230V (50Hz)
AC 2x 208 V (60Hz)
Power Draw
400W typ.
2000W peak.
Powered by Lensmaster.
Powered by Lensmaster.
Powered by Lensmaster.
Powered by Lensmaster.
Powered By Lensmaster
Powered By Lensmaster
Powered By Lensmaster
Powered By Lensmaster
REQUEST A QUOTE
Order your CRX1100 today
IN THE BOX
- 2-Year Lensmaster Software License
(Including future updates & support) - Kuka Agilus KR10 R1100-2 Robot Arm
- Kuka KRC4-Compact or KRC5-Micro Robot Controller
(Based on availability) - Kuka SmartPad 2 Teach Pendant
- Robot Pedestal on Wheels
- 16 CNC Modular Steel Weights (8kg each)
- Camera Adapter with Cheese Plate
- Focus-Iris-Zoom Control Unit
- Tilta Nucleus-M FIZ Motor
- All Required Tools for Assembly
