Meet PIXEL — Your Compact Cinema Robot.
2
m/s
CAMERA SPEED
5
kg
DYNAMIC PAYLOAD
850
mm
ARM REACH
0.05
mm
REPEATABILITY

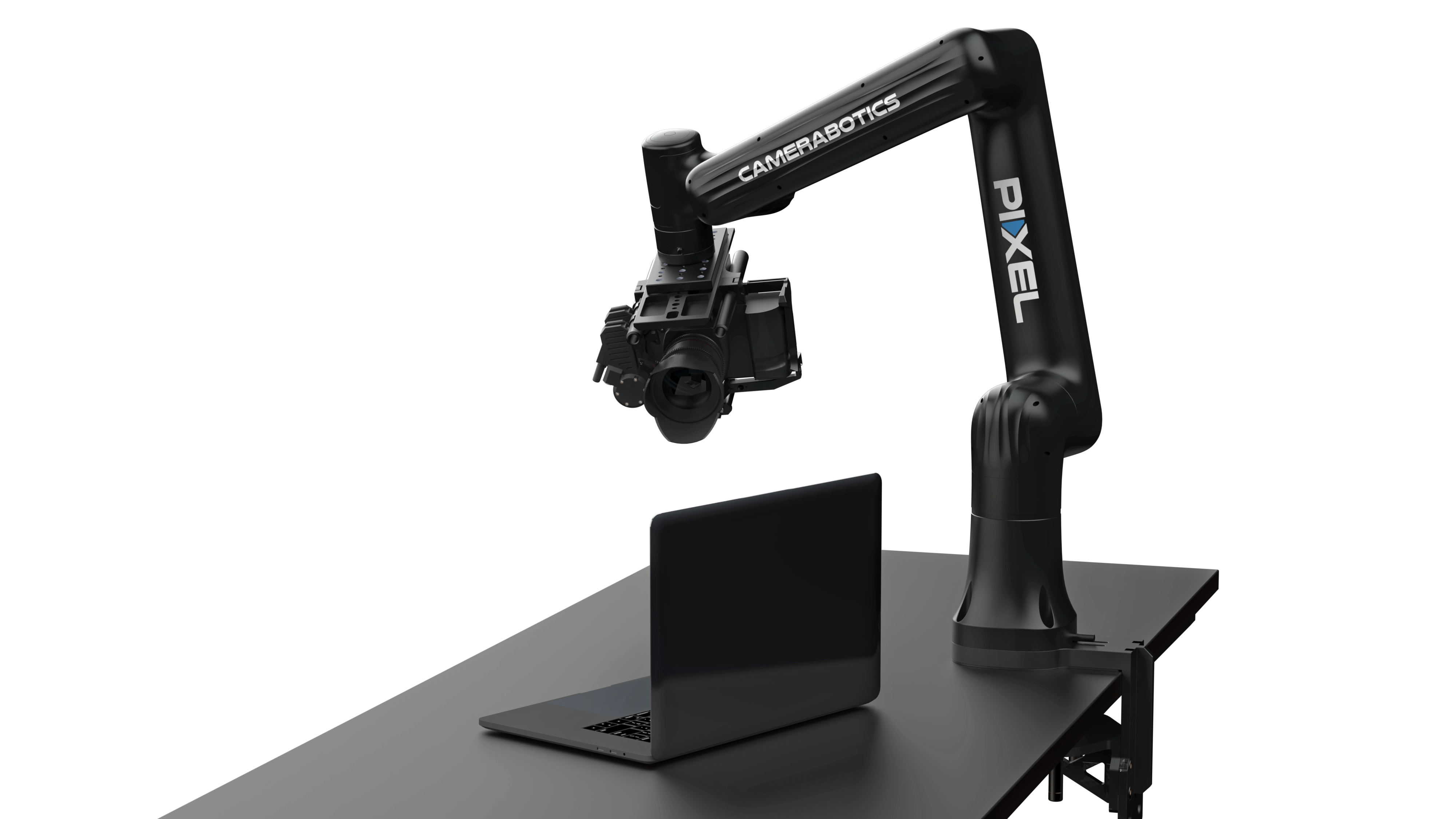

Pixel is a compact, cinema-grade robotic arm. Built for filmmakers, content creators, and production teams who need dynamic, repeatable motion in a portable form.
Move a camera, model, or light — Pixel makes professional motion control accessible, affordable, and lightweight.

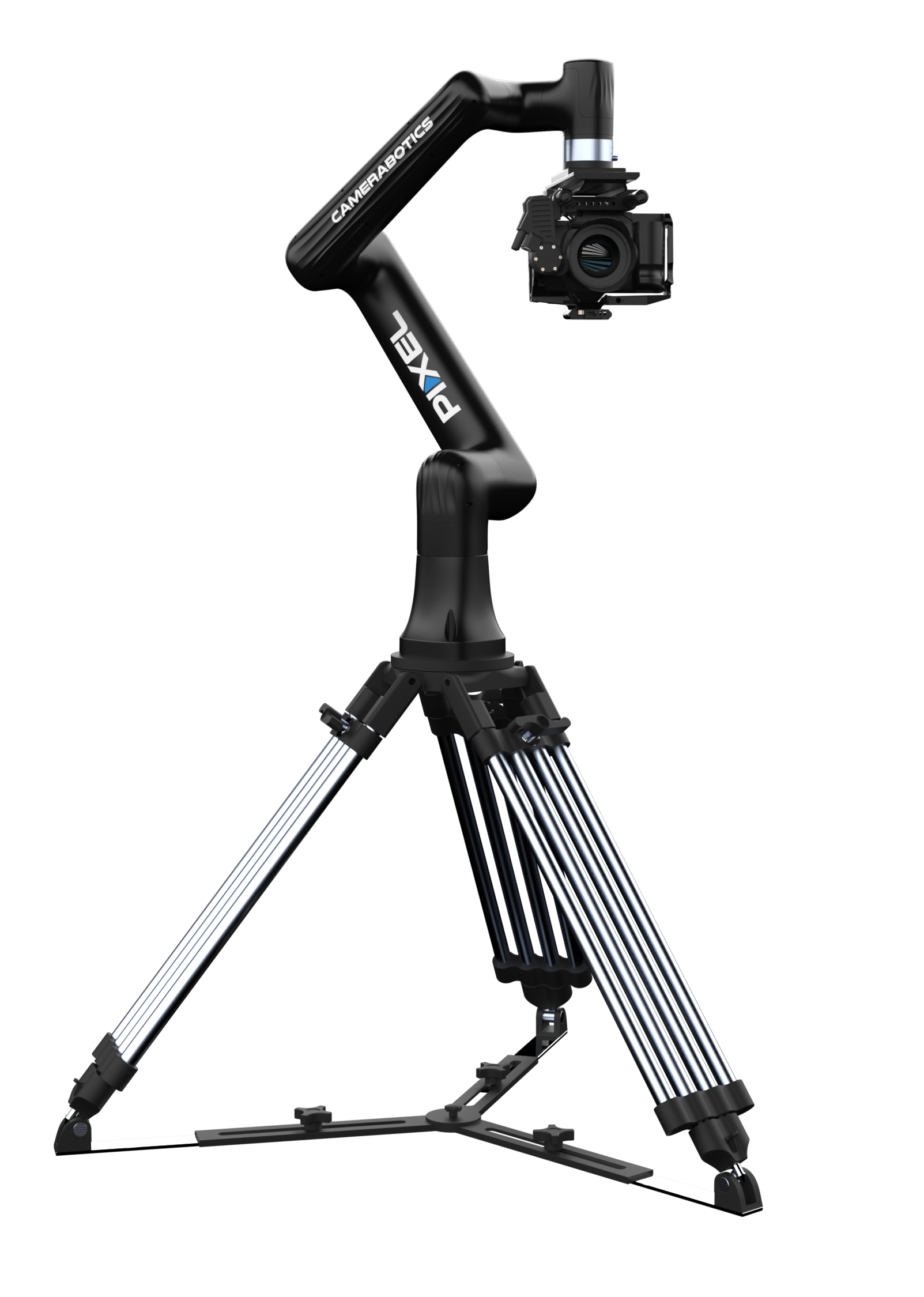

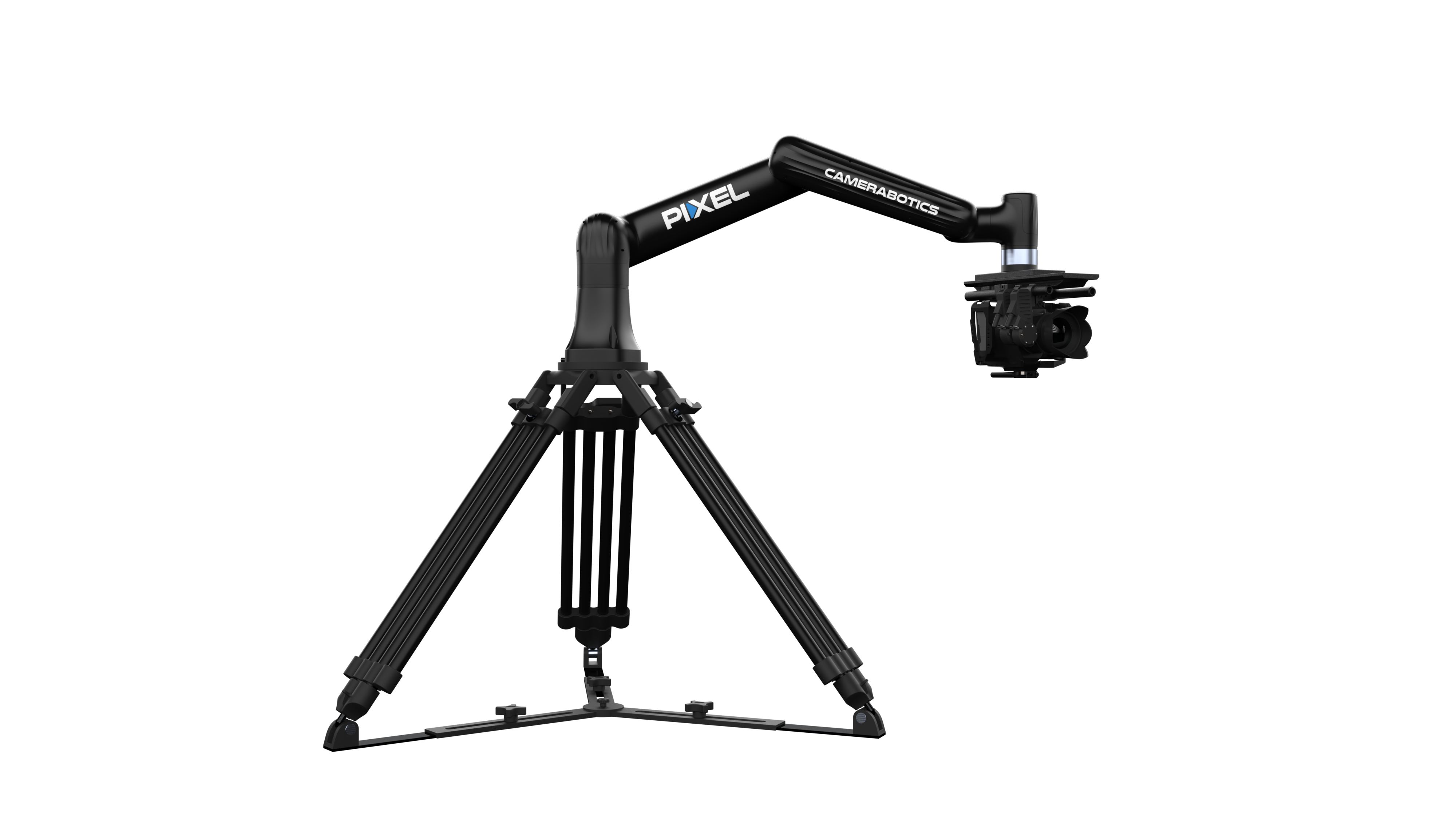

Ultra Portable
Easily mounts on tripods, tables, desks, or any Mitchell interfaces within seconds.
Nearly 1-Meter Reach
PIXEL has a well-balanced arm of nearly 85cm that can carry up 5 killos – enough for most professional cameras – that graciously moves around to cover your whole workspace.
COMING SOON

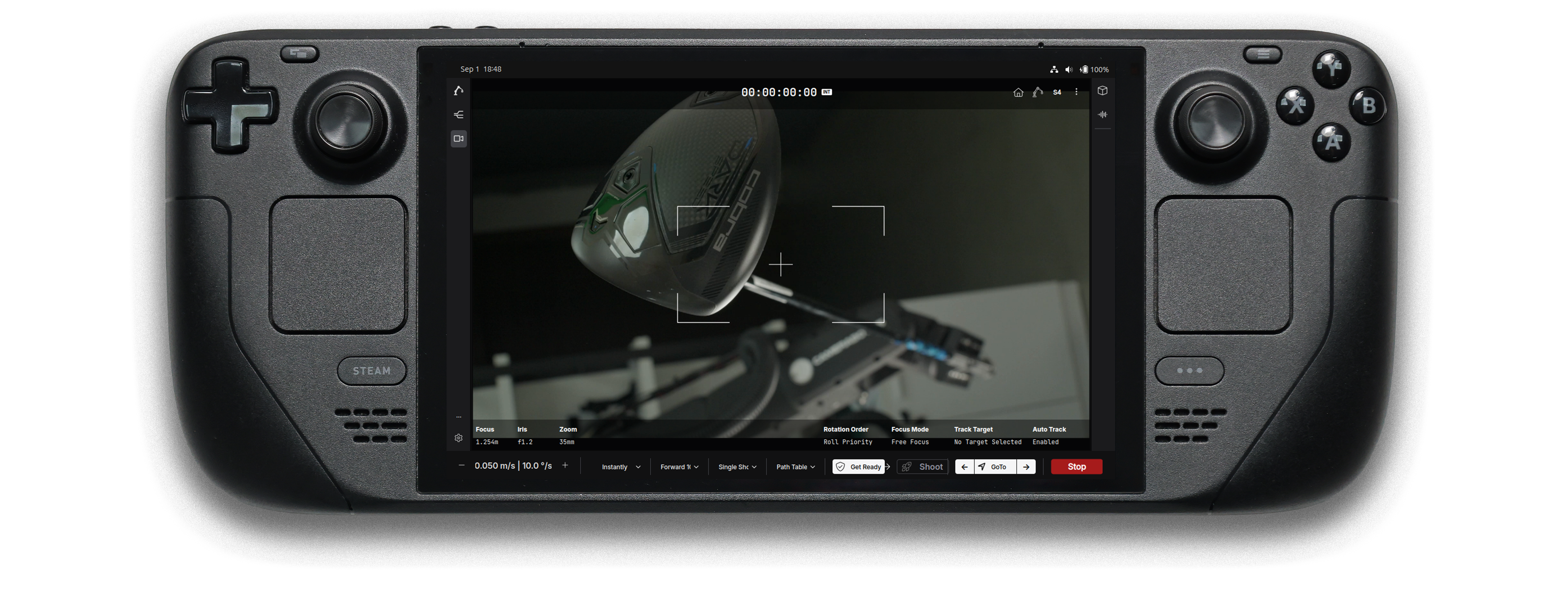

Hand-Held Compatible
Get even greater portability with our hand-held device, which allows you to take PIXEL into much more comfined space while still building your camera moves comfortablly.

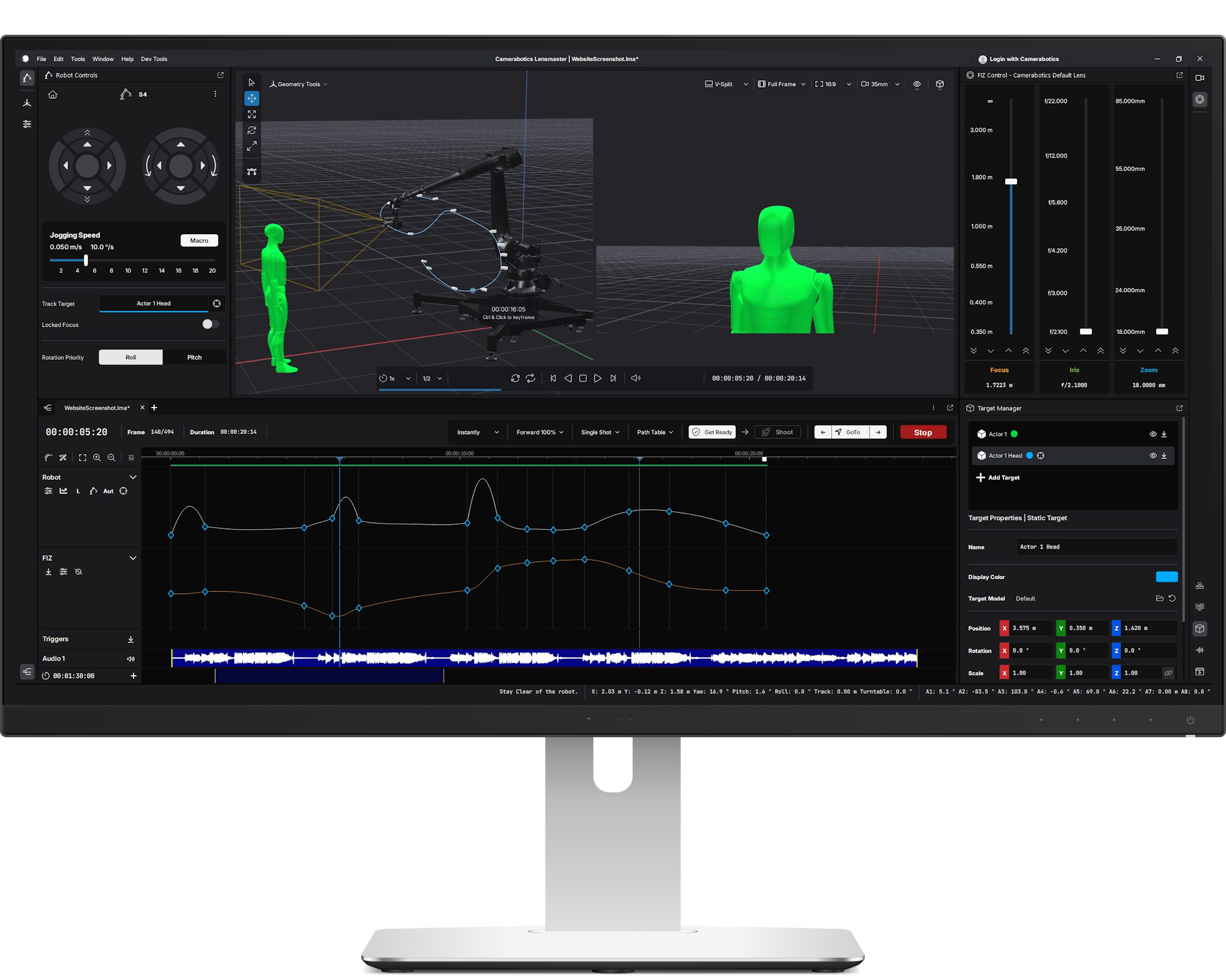

Powered by Lensmater
The world’s most advanced cinema-robot motion control software — precision, creativity, and control in your hands.

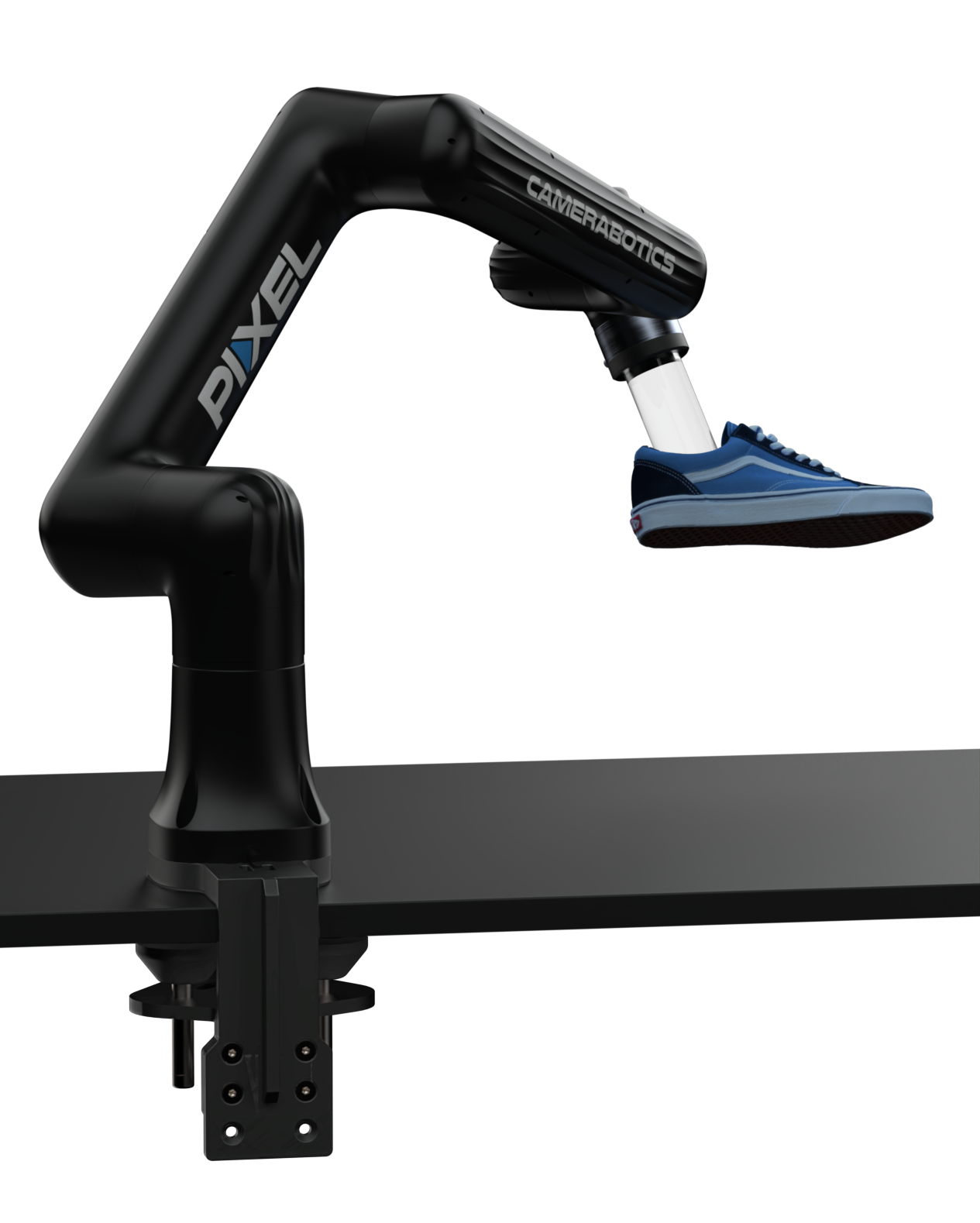

Cinema Robot Or Model Mover
More than a Cinema Robot, PIXEL is also your model mover. Attach a product, light, or any film accessory to PIXEL with ease and precision.
Travel Friendly
PIXEL comes in a compact flight case with dedicated and well-protected compartment storage for each accessory.
Drag Mode
Move PIXEL effortlessly by hand and keyframe your motion with ease.
Standard or Battery Power
Use PIXEL with standard AC power or go fully mobile with battery power.
SLIDER SYSTEM
LINEAR SPEED
1.7
m/s
TO FULL SPEED
0.25
s
SECTION LENGTH
1.15
m
REPEATABILITY
0.10
mm
Fast Setup
With a single cable to the control box, PIXEL Slider is ready to go and integrates seamlessly with LensMaster for a streamlined motion-control workflow.
Dual Linear Rails
High-quality linear rails provide smooth, stable, and quiet motion with excellent rigidity and long-term durability.
EtherCAT Control Box
The dedicated control box powers and drives the PIXEL Slider, with an integrated motor driver and large touchscreen for intuitive control.
Access Drag Mode, Home, configuration, motion settings, and live system status from one interface.
Versatile Mounting
Set up quickly with flexible mounting options, including Mitchell, adjustable legs, and Tilta suction cups, for stable setups across studio, table, floor, and mobile productions.
Compact & Travel-Ready
At just 28 kg, PIXEL Slider is easy to transport and deploy on location. An optional flight case adds protection for travel and storage.
Extended Speed & Reach
PIXEL Slider gives you more freedom to frame, track, and reposition your camera.
Drag Mode
Move the PIXEL Robot and Slider together by hand to find your shot, then save and replay the movement whenever you need.
PIXEL SPECS
Rig Kinematics
Rotate
±360°
100°/s
Lift
±180 °
100°/s
Arm
±160°
100°/s
Roll
±360°
100°/s
Tilt
±360°
100°/s
Pan
±360°
100°/s
Rig Kinematics
Forward Reach (From Center)
0.85m
2.8ft
Upper Reach (From Mounting Surface)
1.05m
3.44ft
Lower Reach (From Floor)
0.49m
1.6ft
Rig Weight
Max Paylaod
5kg
11lbs
Robot
14kg
31lbs
Robot Controller
1.3kg
2.9lbs
Power Requirements
Operating Voltage
100-240V
50/60Hz (5.0A Max)
Power Draw
230W typ.
770W peak.
PIXEL SLIDER SPECS
Weight
Slider Weight
23kg
50lbs
Slider Outriggers Weight (4 pcs)
5kg
11lbs
EtherCAT Control Box
8kg
17.5lbs
Footprint
Slider Length
1.48m
4.85ft
Slider Width
0.24m
0.8ft
Slider Width with Outriggers
0.66m
2.18ft
Slider Height
0.15m
0.5ft
Slider Kinematics
Maximum Linear Speed
1.7m/s
5.5ft
Repeatability
0.1mm
0.003 inch
Time To Full Speed
0.25s
Power Requirements
Operating Voltage
200-240V
50/60Hz
Power Draw
600W peak
