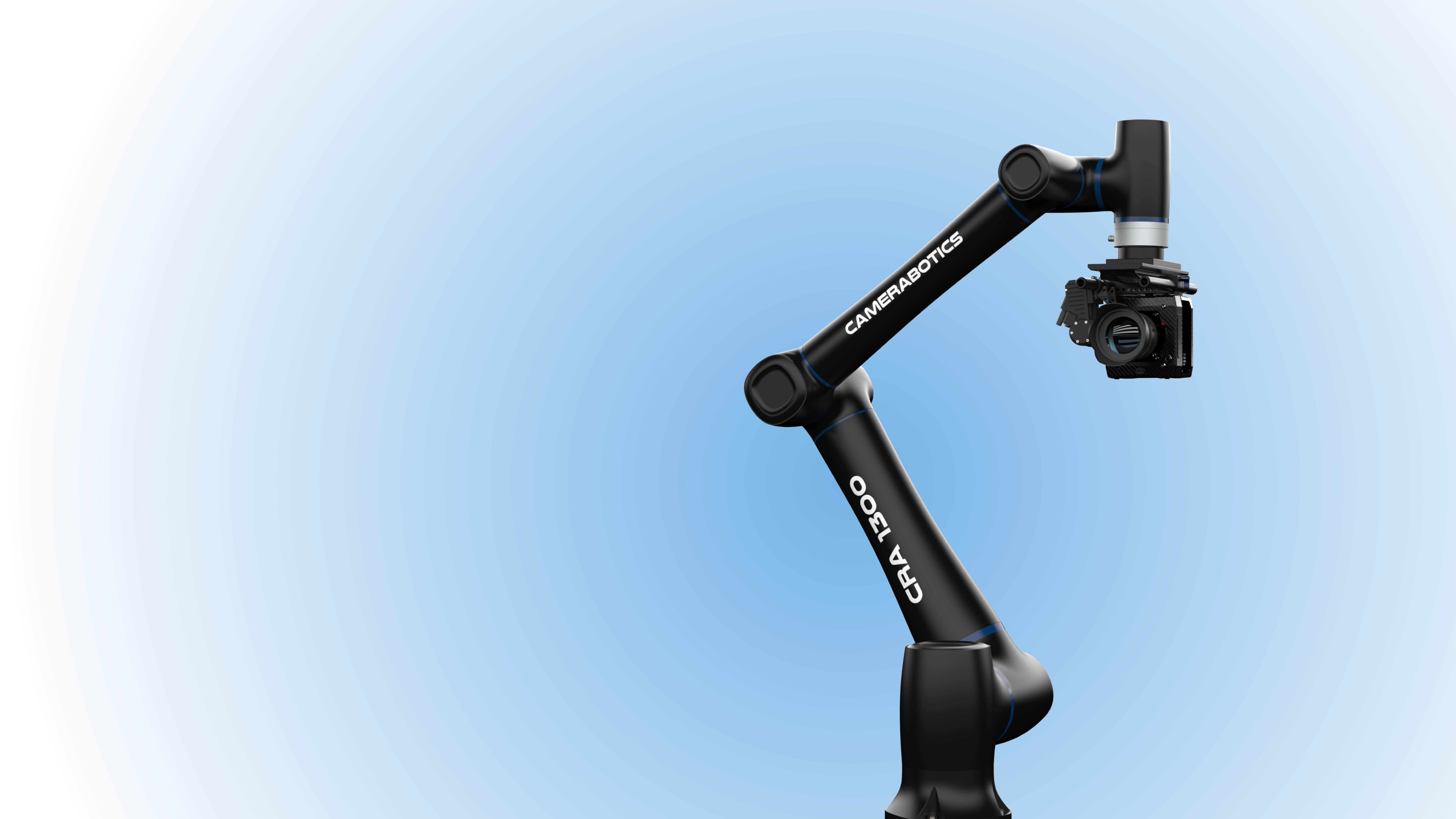

The CRA 1300
Cinema Robot.
Smooth,
Ultra-Portable,
Backdrivable.
2
CAMERA SPEED
10
DYNAMIC PAYLOAD
1300
ARM REACH
0.03
MOTION REPEATABILITY
MACRO VIDEOGRAPHY OR LIVE BROADCAST

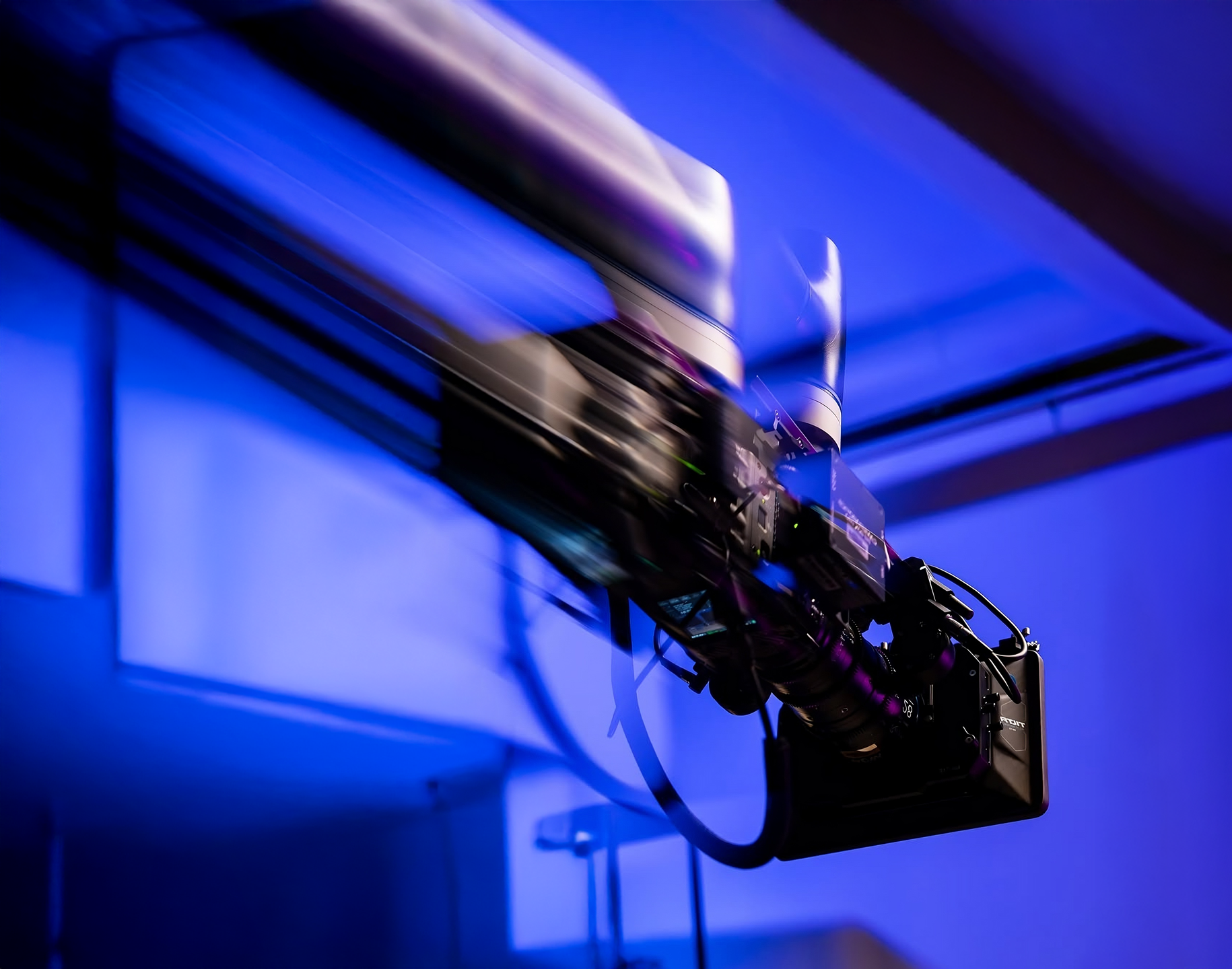

The CRA1300 is a highly portable and professional Cinema Robot that is not only safe around set designers but also delivers stunning and stable video footage that is unrivaled by any other robot in its class.

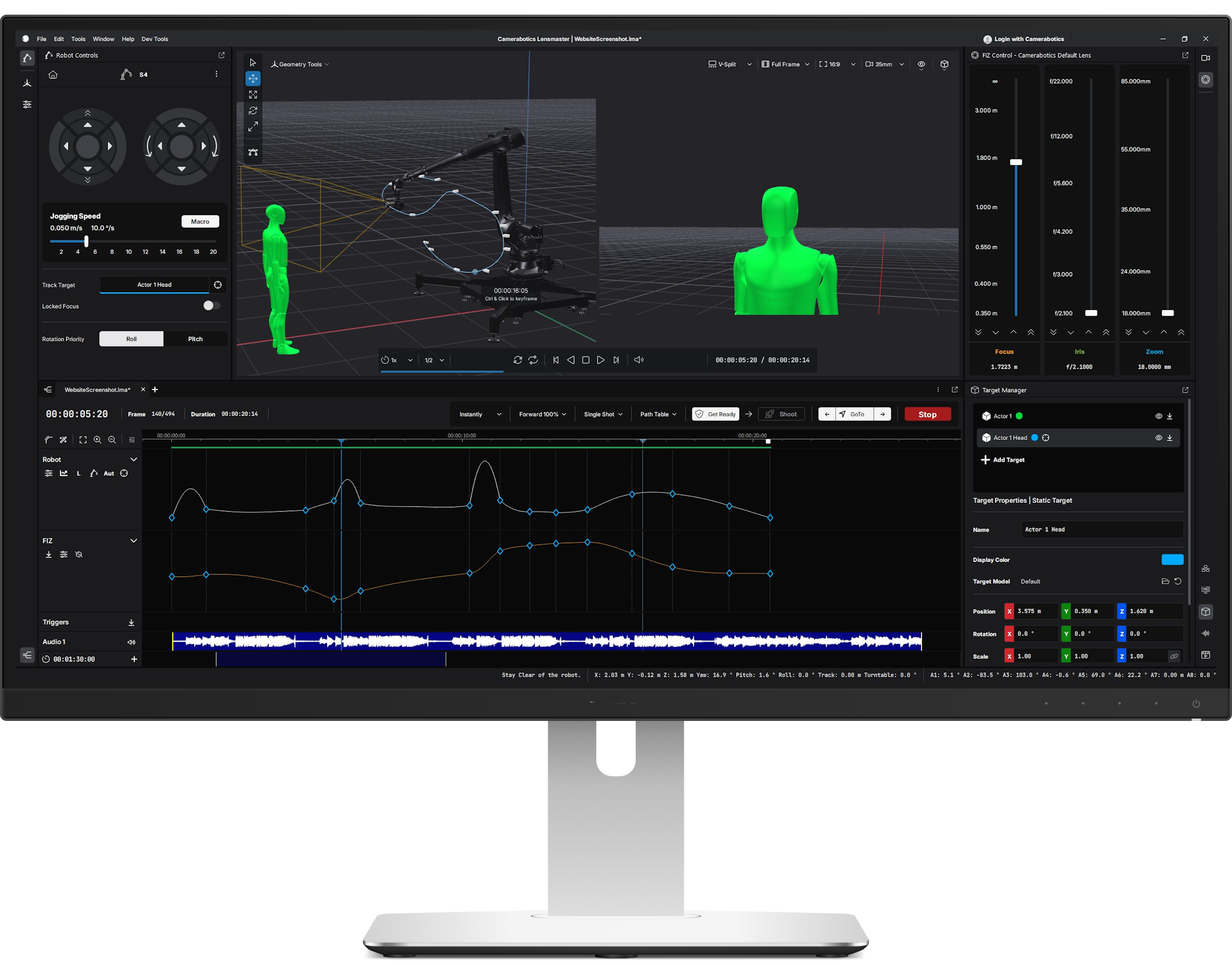

Users can add keyframes by manually pushing the robot — use joysticks — or simply through the Lensmaster desktop application.
Real-Time Interface
Focus on design and creativity and let Lensmaster remove the guesswork from opperating your robot.
Timeline Editor
Design complex moves with few keyframes using Lensmaster’s advanced motion planner.
Joystick Jogging
Jog your robot in realtime using any joystick controller via Lensmaster.
Dynamic FIZ Control
Perfectly sync up your Focus, Iris, and Zoom to nail the perfect shot.
Target Tracking
Easily keep your subject centered in frame at all times regardless of how complex your move is.
Music Sync
Sync music playback with your robot motion and design animations that hit the beat!
Virtual Production Ready
Stream FreeD in realtime to Unreal Engine or Aximmetry.
Export FBX to Maya or Blender.
Pre-Visualization
Virtually visualize your shot whilst designing it before connecting to a robot.
TECH SPECS
Rig Reach
Forward Reach (From Center)
1.3m
4.26ft
Upper Reach (From Floor)
2.23m
7.31ft
Lower Reach (From Floor)
-0.11m
-0.36ft
Rig Kinematics
Range of Motion
Speed
Rotate
±360°
150°/s
Lift
±360°
150°/s
Arm
±160°
180°/s
Roll
±360°
223°/s
Tilt
±360°
223°/s
Pan
±360°
223°/s
Rig Weight
Max Paylaod
10kg
22lbs
Robot
40kg
88lbs
Base (No Weights)
60kg
132lbs
Removable Weights (16pcs)
94.4kg
621lbs
Robot Controller
9.5kg
21lbs
Footprint
Base Height
0.76m
2.5ft
Base Footprint
0.696m x 0.696m
2.28ft x 2.28ft
Power Requirements
Operating Voltage
AC100V~240V (50/60Hz)
Power Draw
350W typ.
680W peak.
Powered by Lensmaster.
Powered by Lensmaster.
Powered by Lensmaster.
Powered by Lensmaster.
Powered By Lensmaster
Powered By Lensmaster
Powered By Lensmaster
Powered By Lensmaster
REQUEST A QUOTE
Order your CRA 1300 today
IN THE BOX
- 2-Year Lensmaster Software License
( Including future updates & support) - Dobot CR10A Robot Arm
- Dobot Robot Controller (CC262)
- Robot Pedestal on Wheels
- 16 CNC Modular Steel Weights ( 5.9kg each)
- Camera Adapter with Cheese Plate
- Focus-Iris-Zoom Control Unit
- Tilta Nucleus-M FIZ Motor
- All Required Tools for Assembly
